SK MECHANICAL WORKS

Manufacturers and Suppliers of All Kinds of Plastic Machinery

PLASTIC REPROCESSING PLANT

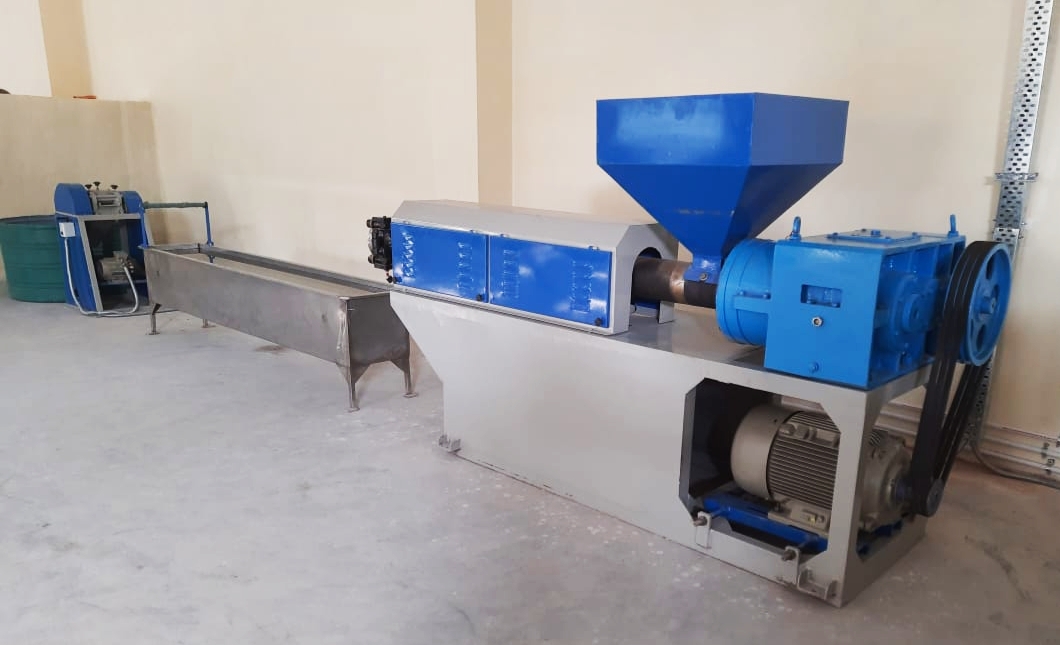

Plastic Reprocessing Plant

SK Mechanical Works is the most trusted manufacturer, supplier & exporter of Plastic Reprocessing Plant, Single Screw & Barrel, Twin Screw & Barrel, Bimetallic Screw & Barrel, Food Processing Screw & Barrel in Ludhiana Punjab India

We manufacture HDPE Pipe Manufacturing Machine, Plastic Reprocessing Plant, PVC Pipe Manufacturing Machine and PVC Profile Plant. SK Mechanical manufactures a wide range of PVC Pipe Machine which is mainly used in PVC, UPVC and CPVC pipe manufacturing. The Machine Comes With Output of 110 Kg to 550 Kg. Our PVC Pipe Machines comes with a wide range of high capacity PVC extruders with screw Dia 52mm to 91mm. It will depend upon the application of PVC pipes. The extruder has highly advanced and innovative screw construction.

This screw is responsible for super quality pipe production at low rejection rate. Pipe Extrusion Machines comes with robust design and construction. PLC control in PVC Pipe making machine is too impressive that offers high-end performance and it’s easy to operate.

PVC REPROCESSING PLANT

HDPE Pipe Manufacturing Machines

pvc and hdpe pipe plant

Sk Mechanical Works offer high speed HDPE extrusion ( Pipe Manufacturing Plant) line which is available in different models. The machine finds usage in the extrusion of polyolefin plastics. The plasticized capacity of the extrusion line ranges from 175kg/hr to 600 kg/hr.

Features:

  • Easy operation
  • Optimum performance
  • Durable
  • Low power consumption
  • Corrosion resistance

Spiral Type Die Head:

  • Spiral type die head ensures stable wall thickness of PE pipe even at higher output.
  • It can produce pipe upto 630mm
  • Low pressure diagonal channel with spiral mixing part ensures extrusion at low temperature and homogeneous plasticization.


Screw & Barrel:

  • The screw adopt barrier type mixing zone.
  • The barrel feeding zone is groove feed bush and made of hard alloy.
  • It is result higher output rates, homogeneous plasticizing and material slippage


PLC Control System:

  • There is an option for the whole line with PLC control system and large liquid crystal screen which makes the operation very convenient.

Vacuum Tank:

  • Special design vacuum sizing can ensure the stability of diameter and roundness even when producing the pipe with higher wall thickness.
  • The water spray unit produces high speed spray vortex to achieve fine and even cooling effect.

Double/Single Station Coiler:

  • Double station coiler can be provided for diameter up to 63mm.
  • Single station coiler can be provided for diameter up to 110mm.
